Semiconductor

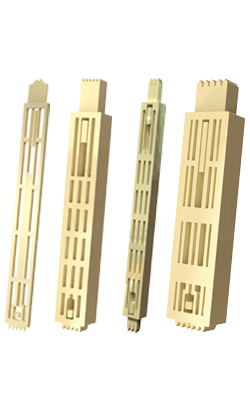

M-POGO Pin

The MEMS process allows fine pitch pins to be built up to 65 microns, M-POGO pin structure is useful for high-speed product testing, and low pin-force is a suitable solution for reducing the cost of the inspection equipment.

Item Tolerance
Pin Length Min 77μm -
Thickness Min 37μm ±1μm
Contact force 4 - 8g/f _ 100~180μm
(one point)
Contact Resistance <50mΩ
Current 2A @ 0.4Pitch
Temp -40 ~ 150℃
Life Time About 200 thousand
Bandwidth 40GHz @ -1dB / 0.4Pitch

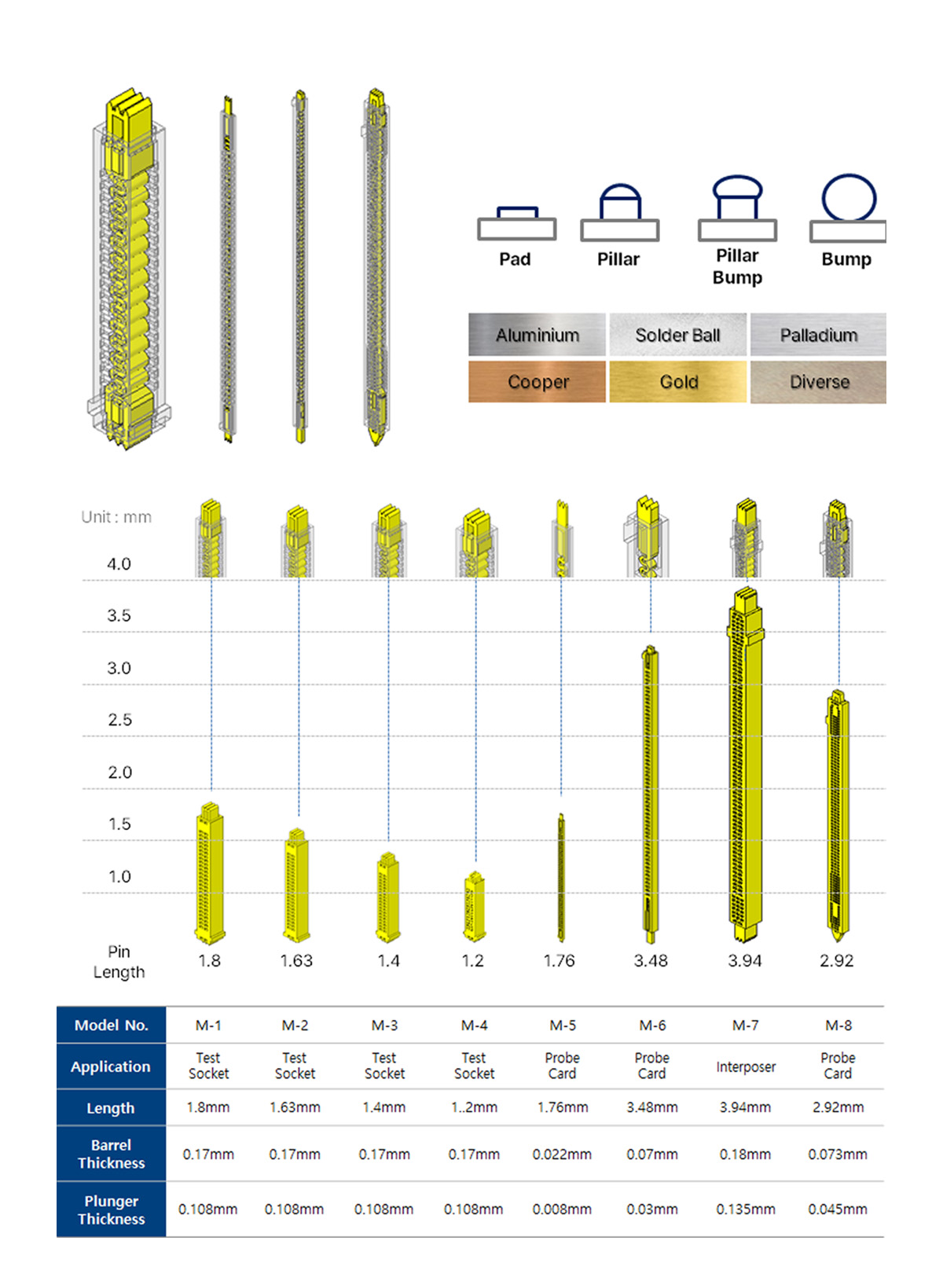

Products Line-up
